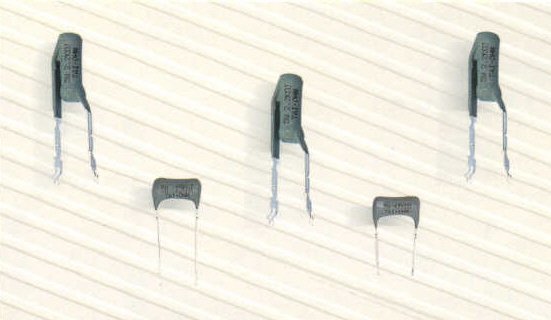

RS  Terminal Type MO Resistors


2.Features

Excellent flame resistance coating

Stable performance in diverse environments

High purity ceramic core

High safety standard

Meet EIAJ-RC2655A requirements

Too low or too high ohm value can be supplied on reguest

±5% tolerance standard

Green body color

3.Explanation On Specifications

Style

　

　

Power rating at 70℃

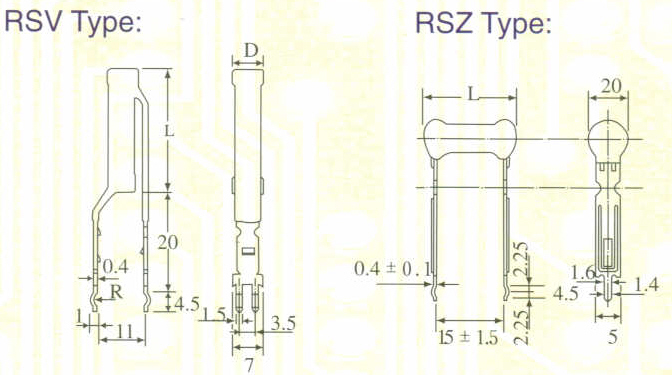

 Dimension (mm) Max working voltage Max overload voltage Max pulse overload voltage Resistance  range
L±2 D 2

RSV5W

 RSV 5W 5W 20 7 500V 800V 1500V 10Ω~10LΩ
RSV7W RSV 7W 7W 30 7 500V 800V 1500V 10Ω~10KΩ
RSZ3W   RSV 3W 3W 16 6 350V 600V 1000V 10Ω~10KΩ
RSZ5W   RSV 5W 5W 18 7 500V 800V 1500V 10Ω~10KΩ



　
