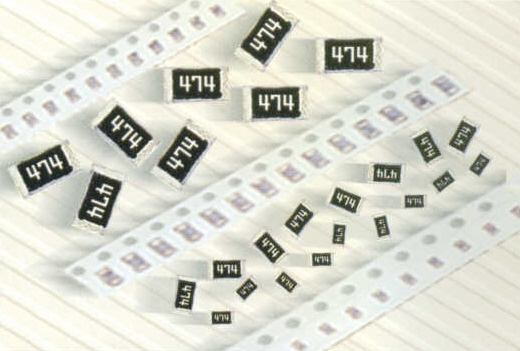

RM  Thick Film Chip Resistors

2.Features
Small size and light weight

Reduction of assembly costs and matching with placement machines

Suitable for both flow & re-flow soldering

　

3.Explantion On Specification

Style

　

　

Power Rating at 70℃

 Max Working Voltage Max Over Load Voltage Dielectric Withstanding Voltage Operating Temp (℃) Resistance Tolerance (%) Resistance Range (Ω) Std Res. Value Temp Co-efficient PPM/℃

RM04

 1/16W 25V 50V 500V

-55

~

+125℃

 ± 1%

± 5%

 10Ω~1M

2.2Ω~1MΩ

 E-96

E-24

 ± 200
RM06 1/0W 50V 100V -55

 ~

125℃

　

 ± 0.1%

± 0.5%

± 1%

　

 56Ω~560KΩ

10Ω~1MΩ

 E-96 ± 200
RM08 1/8W 150V 300V
RM12 1/4W 200V 400V ± 2%

± 5%

 1Ω~10MΩ E-24 ± 200
RM20    1/2W 200V 400V
RM25

　

 1W 200V 400V

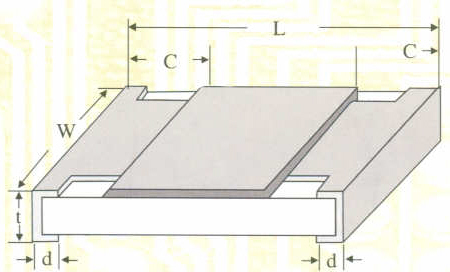

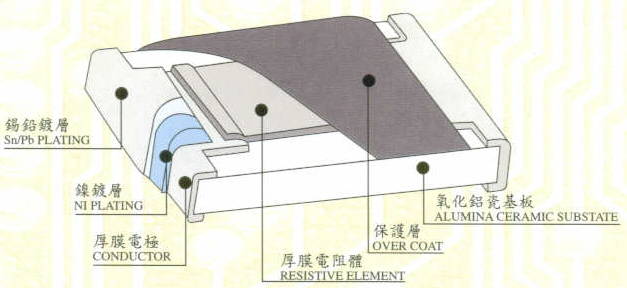

4.DIMENSION           UNIT:mm
STYLE L W C d t
RM04 1.0 + 0.1

1.0 - 0.05

 0.05  ±  0.05 0.2  ±  0.1 0.25  ±  0.1 0.35  ±  0.05
RM06 1.6  ±  0.1 0.8  ±  0.1 0.3  ±  0.2 0.3  ±  0.2 0.45  ±  0.1
RM08 2.0  ±  0.1 1.25  ±  0.1 0.4  ±  0.2 0.4  ±  0.2 0.5  ±  0.1
RM12 3.1  ±  0.1 1.55  ±  0.1 0.5  ±  0.3 0.4  ±  0.2 0.6  ±  0.1
RM20 5.0  ±  0.1 2.5  ±  0.15 0.6  ±  0.3 0.5  ±  0.25 0.6  ±  0.1
RM25 6.3  ±  0.1 3.1  ±  0.15 0.6  ±  0.3 0.5  ±  0.25 0.6  ±  0.1
　

5.EXPLANATION  ON  PART NUMBERS

RM

Chip Resistor

　

10

Series

　

04-0402 1/16W

06-0603 1/10W

10-0805 1/8W

12-1206 1/4W

20-2010 1/2W

25-2512 1W

　

T

Packaging

　

T-Paper Tape

E-Embossed Tape

B-Bulk Cassette

　

　

103

Nominal Resistance

　

10KΩ

J

Resistance Tolerance

　

J-  ±5%

G-  ±2%

F-  ±1%

D-  ±0.5%

B-  ±0.1%

　



　
