| Carbon Composition Resistors(RC) |
* Explanation of Number
| Type | Power Rating | Forming Packaging | Value of Resistance | Tolerance |
| RC | 50 | P | 100 | K |
| Carbon Composistion Resistors | 50:1/2W 25:1/4W |
P:bulk | 3 digit marking for (J, K, M) Example:100:10  122 : 1.2K 473 : 47K |
J: 5%K: 10%M: 20% |
* Rating
| Stlye | Power Rating at 70oC |
MAX Working Voltage | MAX Over Load Voltage | Resistance Tolerance |
| RC1/2 | 0.5 | 350 | 700 | 2.2-12M |
| RC1/4 | 0.25 | 250 | 400 | 2.2-22M |
* Specification & Characteristcs
| Test Items | Performances | Test Methods (JISC 5202) |
| Short Time Overload |  R 2.5%R |
5.5A |
| Pulse overload | 1000M以上 |
5.6A |
| Moisture Resistance |
RC1/2:R10%R RC1/4: R5%R |
7.9 1,000/Hr |
| Load Life | R10%R |
7.10 1,000Hr |

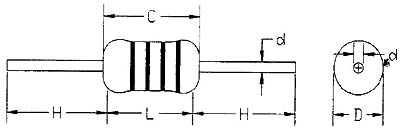

* Dimension
 |
|
規格型號 |
L |
D |
H |
d |
|
RC1/2 |
10.0 |
3.5 |
26 |
0.7 |
|
RC1/4 |
6.3 |
2.3 |
26 |
0.6 |
 |
 |
 |
 |
 |
 |
 |
 |
