| Thick Film Resistor Networks (RA) |
* Explanation of Number
| Type | Power Rating | Resistance | Ω Tolerance | Pin No. | Circuit Type |
| RA | 12 | 103 | J | 8P4R | B |
| Thick Film Resistor Network |
12 : 1/8W | 3 digit marking for E-24 series (G,J) 4 digit marking for E-96 series (D , F) |
F : 1% G : 2% J : 5% | 5pin-14 pin | A : Side Common B : Isolates Type C : Center Common D : Series Type |
| Type | Power Rating | Max. Working Voltage | Max. Overload Voltage | Rated Ambient Temp. | Resistance Range | Resistance Tolerance | ||||||||||
| Per Resistor | One Package (Max) | |||||||||||||||
| 5 pin | 6 pin | 7 pin | 8 pin | 9 pin | 10 pin | 11 pin | 12 pin | 13 pin | 14pin | |||||||
| RA12 | 0.125W | 0.5 | 0.625W | 0.75W | 0.875W | 1W | 1.05W | 1.15W | 1.25W | 1.35W | 1.45W | 100V | 150V | 70 C | 22 Ω- 22MΩ |
D,F,G,J,K |
* Circuit Type |
 |
 |
 |
* Specification & Characteristics
| Test Items | Performances | Test methods (JIS C 5202) | |
| Temperature Coefficient (PPM/ °C) | < ± 200PPM/°C | 5.2B | |
| Short Time Overload |  R < ± (1%+0.05 Ω) |
5.5 | |
| Insulation resistance | > 10000M Ω or More | 5.6 | |
| Dielectric Withstanding Voltage | R < ± (0.5% + 0.05 Ω) |
5.7F | |
| Terminal Strength |
Pull Test | R < ± 0.25% |
6.1 (1) 1kg / 10sec. |
| Bend Test | R < ± 0.25% |
6.1(4) 50g | |
| Effect of Soldering Heat | R < ± 0.25% |
6.4 60 °C / 10Sec | |
| Temperature Cycling | R < ± 0 / 5% |
7.4 | |
| Load Life | R < ± (5% + 0.05 Ω) |
7.10 1,000/Hr | |
| Load Life In Humidity | R < ± (5% + 0.05 Ω) |
7.9 1,000Hr | |
Note: Special specification can be specified and manufactured on
request

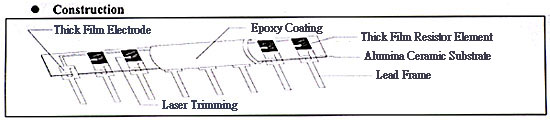

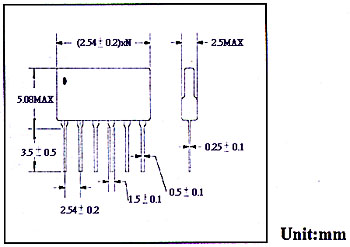

| * Appearance and Dimension Dimension  |
 |
 |
 |
 |
 |
 |
 |
 |
