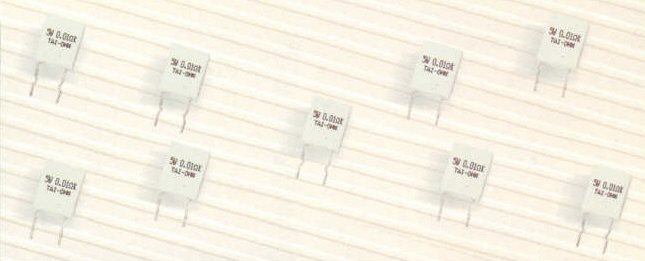

MSQ  Non-inductive CMOS chip resistor

Features
Small and light

Non-inductive

High stability

Low temperature coefficient

　

　


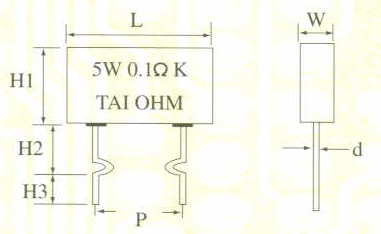

 Dimension of HK-Type Resistors

PART NO

　

 　

 Dimension (mm)
L  ±  0.1 W  ±  0.1 P ±  0.1 H1  ±  0.05 H2  ±  0.1 d  ±  0.05
MSQ 2WH 14.0 4.0 10.0 8.0 15.0 0.6
MSQ 5WH 15.0 4.5 10.0 16.5 15.0 0.6
MSQ 10WH 25.0 5.0  10.0 17. 5 15.0 0.6

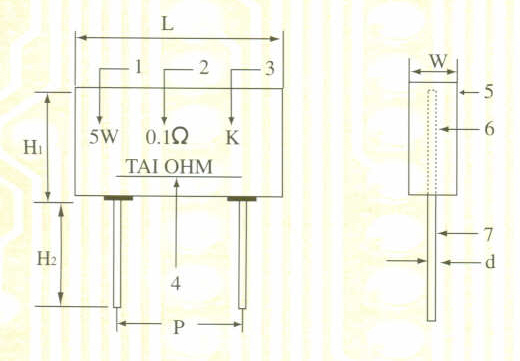

Dimensions of H-Type resistor
　 Components Materials/Finish/Specification
1 power Rating 2W,5W,10W
2 Value of Resistance E-24 Series
3 Tolerance J(5%),K(10%)
4 Mark Manufactured by TAI
5 Case Ceramic
6 Resistor Cu,Ni/Nichrome/Manganin- plate
7 Lead wire Copper wire

PART NO

  Dimension (mm)
L  ±  0.1 W  ±  0.1 P ±  0.1 H1  ±  0.05 H2  ±  0.1 d  ±  0.05
MSQ 2WH 14.0 4.0 10.0 8.0 15.0 0.6
MSQ 5WH 15.0 4.5 10.0 16.5 15.0 0.6
MSQ 10WH 25.0 5.0  10.0 17. 5 15.0 0.6

　



　
