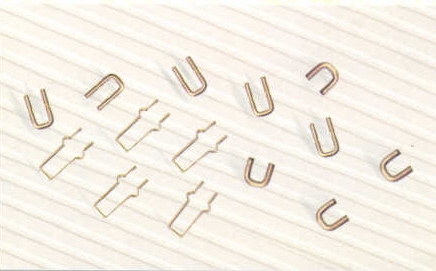

MR  MiniOhm Resistors

2.Features

Any type is available for practical need.

P&H dimensions are determined by what the resistance and soldering are.

　

3.EXPLANATION  ON  PART NUMBERS

MR Mini Ohm Resistors

08 Diameter 04-Φ0.4 : 08-Φ0.8 : 10-Φ1.0  : 20-Φ2.0

F Resistance Tolerance 　 F(　±1%) J(  ±5%) K( ±10%)

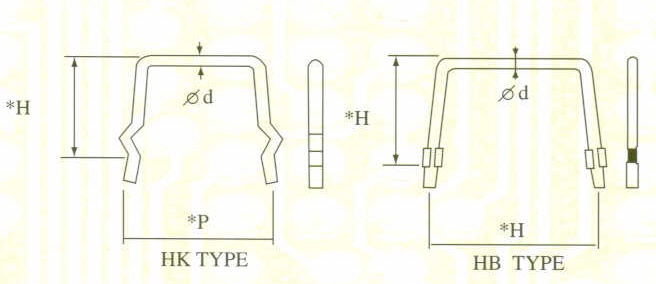

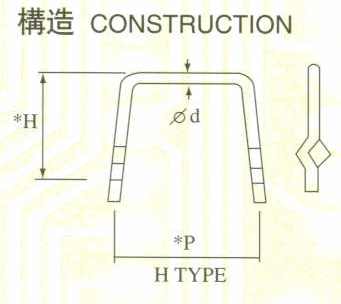

H Forming Type 　 H TYPE HK TYPE HB TYPE

A Forming Type 　 A   -   5.0(mm) B   - 10.0(mm) C  -  12.5(mm) D  - 15.0(mm) F -  20.0(mm)

0100 [P] Resistance 　 Normal Marking 0100 =10mΩ [P]  Sn/PbPlating

4.FEATURES

Φd(mm)	Max Current Rating(A)	Resistance Range (mΩ)	Resistance Tolerance	Operating Temp(℃)	Temp Coefficient PPM/℃
0.4	2.0	70~150	F( ≧ 10mΩ) ±0.10 J( ≧ 5mΩ) ±5% K( ≧ 3mΩ) ±10%	-40℃ ~ +155℃	± 50 　 　 ± 100
0.5	2.5	50~150
0.6	3.0	50~100
0.7	4.0	20~70
0.8	4.5	10~50
0.9	5.0	10~40
1.0	5.5	6~30
1.1	6.0	6~20
1.2	7.0	5~20
1.3	7.5	5~20
1.4	8.0	5~20
1.5	9.0	3~20
1.6	9.5	3~15
1.8	00	3~10
2.0	12	3~10
The specification beyond above can be designed accordibg to customer's practical requirement
