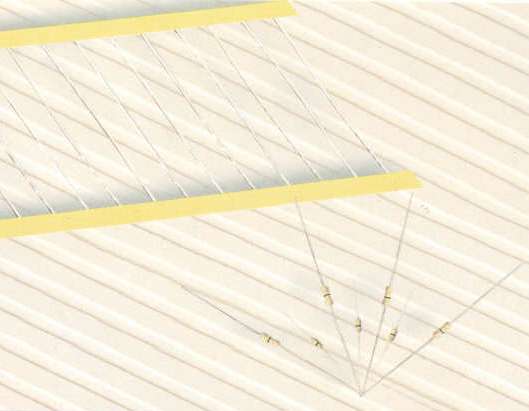

JUMP  Jumper Wires & Zero-Ohm Resistors
　

　

Style

　

　

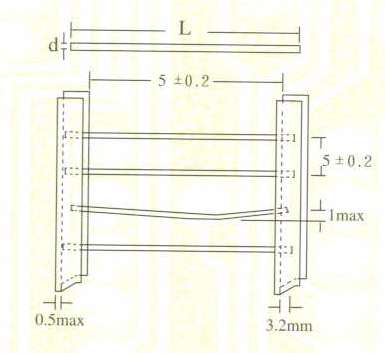

 Dimension
L ±3 +0.02

 d

-0.05
Jump 0.52 T5 52 0.52
Jump 0.60 T5 52 0.60
Jump 0.80 T5 52 0.80

Style Power

rating

at 70℃

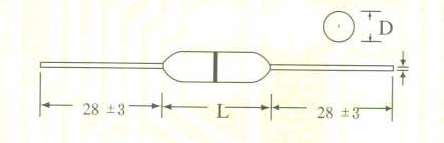

 (mm)Dimension(mm)
D Max L Max ±0.02

d

-0.05

 H ± 3
RD1/8W RD16 1/8W 1.85 3.5 0.5 28
RD1/4W RD25 1/4W 2.5 6.8 0.6 28



　  5.Performance Specifications:

Maximum Resistance  0.00165Ω

Load Material Tin-plated copper

Body Material(ZO type)  Electric grade with high performance material

Insulation Resistance  Dry-10,000MΩ;Wet-100MΩ

Dielectric Withstanding voltage  Atmospheric-500V RMS; Reduced-325V RMS

Current Rating  25AMPS at 25℃ derating to O AMPS at 150℃

　
