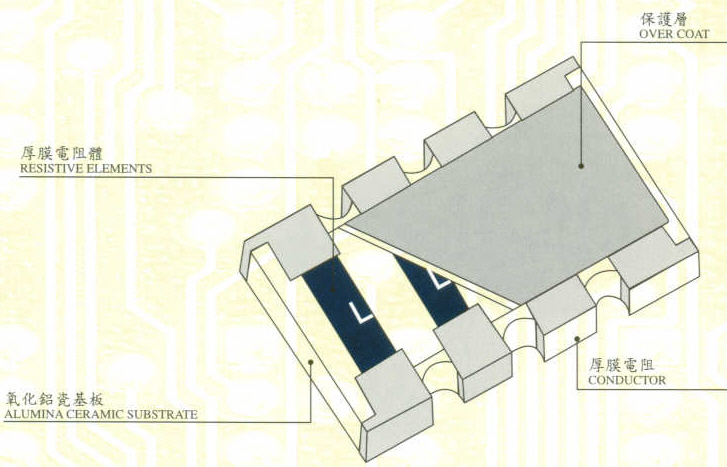

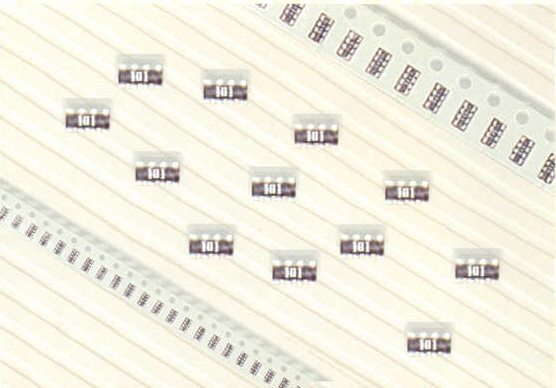

CN Thick Film Chip Resistor Networks

2.Features

High density

High reliability

Automatic insertion

　

3.Explantion On Specification

Style	Power Rating at 70℃	Max Working Voltage	Max Over Load Voltage	Dielectric Withstanding Voltage	Operating Temp (℃)	Resistance Tolerance (%)	Resistance Range (Ω)	Temp Co-efficient PPM/℃
CN24	1/16W	25V	50V	200V	-55 ~ +125℃	± 1% ± 5%	10Ω~1MΩ	± 250
CN28	1/16W
CN34	1/16W	25V	50V	200V			10Ω~1MΩ	± 200
CN35	1/16W
CN65	1/16W	50V	100V	300V

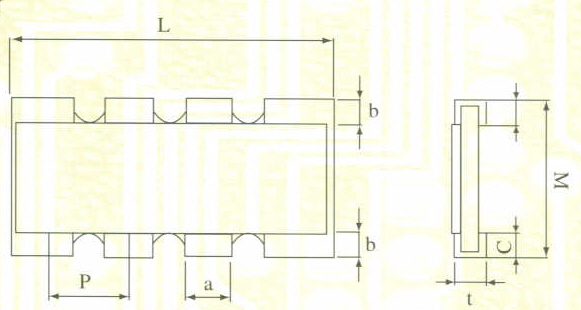

4.DIMENSION UNIT:mm

STYLE	L	W	t	p	a	b	c
CN24	2.0 ± 0.1	1.0 ± 0.1	0.4 ± 0.1	0.5 ± 0.05	0.3 ± 0.1	0.15 ± 0.1	0.25 ± 0.2
CM28	4.0 ± 0.2	1.6 ± 0.15	0.4 ± 0.1	0.5 ± 0.05	0.3 ± 0.1	0.15 ± 0.1	0.25 ± 0.2
CN34	3.2 ± 0.1	1.6 ± 0.1	0.55 ± 0.1	0.8 ± 0.05	0.45 ± 0.1	0.3 ± 0.2	0.3 ± 0.2
CN35	3.2 ± 0.1	1.6 ± 0.1	0.55 ± 0.1	0.64 ± 0.05	0.35 ± 0.1	0.3 ± 0.2	0.3 ± 0.2
CN65	6.4 ± 0.2	3.1 ± 0.2	0.55 ± 0.1	1.27 ± 0.05	0.8 ± 0.2	0.5 ± 0.2	0.5 ± 0.2

　

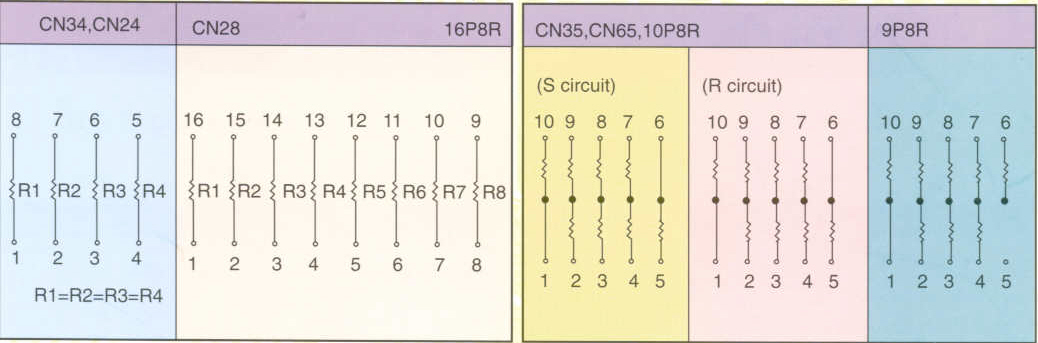

5.SCHEMATIC

　

　

6.EXPLANATION ON PART NUMBERS

CN

ChipResistor

Networks

　

34

Series

　

24-0402 × 4

28-0402 × 8

34-0603 × 4

35-0603 × 5

63-1206 × 5

　

T

Packaging

　

T-T/R

R-10P8R 5.10com

S-10P8R 1.6com

D-9P8R 10com

　

　

103

Nominal Resistance

　

10KΩ

J

Resistance Tolerance

　

J- ±5%

G- ±2%

F- ±1%

　

　
