Small and light

Thin film manufacturing method stabilizing fusing characteristics

Low interal resistance

Suitable for over current protection

Recognized Standard

UL248-14 File No:E241710

Application

PC related equipment and peripherals (PC , Hard Drive , CD-R/RW, Print etc.)

Small portable devices (Mobile phone, PDA Battery Charger etc.)

Digital Camera (Digital still camera)

Game equipment.

LCD monitors, LCD modules (Backlight Inverter)

Battery Packing.

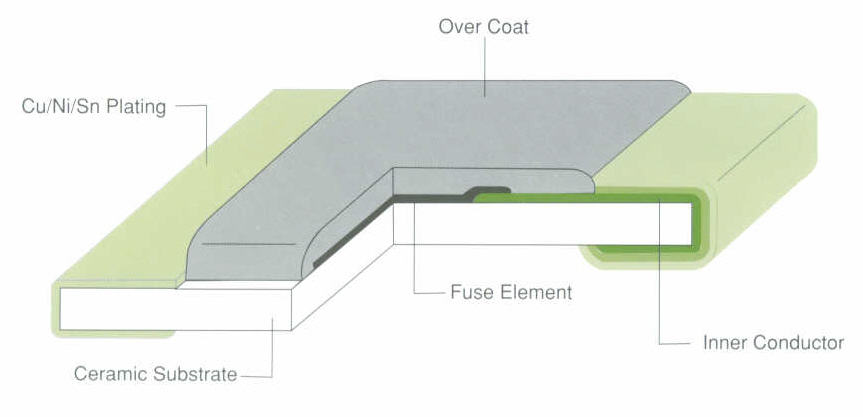

Construction

Type Designation

Product code

=========

Thin Film

Chip Fuse

Size

=========

06:0603

12:1206

Rated Voltage

==========

V6:63V

V5:50V

V3:32V

V2:24V

Pcakaging

==========

T : Paper Tape(5k)

N : Lead Free

R50

Rate Current

=========

R50:0.5A

1R0:1A

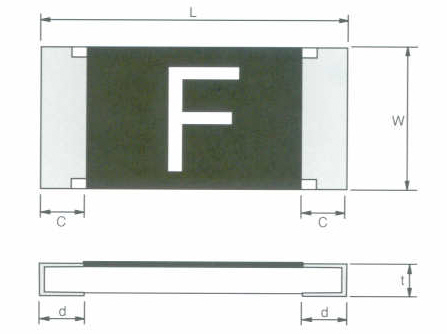

Dimension

Ratings & Characteristics

Part Designation	Marking	Rated Current	Fusing Time	Resistance (mΩ)Typ.*	Rated Voltage	Breaking Capacity	Body Temperature Rising
CF06V5TR20	B	0.2A	Open within 5sec.at 200% rated current	1300	DC 50V	DC 50V 50A	<75℃ at 100% rated current
CF06V5TR25	C	0.25A		710
CF06V5TR315	D	0.315A		500
CF06V5TR40	E	0.4A		310
CF06V5TR50	F	0.50A		190
CF06V3TR63	I	0.63A		140	DC 32V	DC 32V 50A
CF06V3TR80	K	0.80A		100
CF06V3T1R0	L	1.00A		72
CF06V3T1R25	M	1.25A		61
CF06V3T1R50	P	1.50A		48
CF06V3T1R60	N	1.60A		42
CF06V3T2R0	S	2.00A		35
CF06V2T2R50	T	2.50A		25	DC 24V	DC 24V 50A
CF06V2T3R00	3	3.00A		23
CF06V2T3R15	U	3.15A		22
CF12V6T1R0	L	1.00A	Open within 1min.at 200% rated current	115	DC 63V	DC 63V 50A
CF12V6T1R25	M	1.25A		63
CF12V6T1R50	P	1.50A		50
CF12V6T2R0	S	2.00A		41
CF12V3T2R50	T	2.50A		26	DC 32V	DC 32V 50A
CF12V3T3R00	3	3.00A		23	DC 32V	DC 32V 50A
CF12V2T4R0	W	4.00A		16	DC 24V	DC 24V 50A
CF12V2T5R0	Y	5.00A		12.5
CF12V2T7R0	Z	7.00A		10
